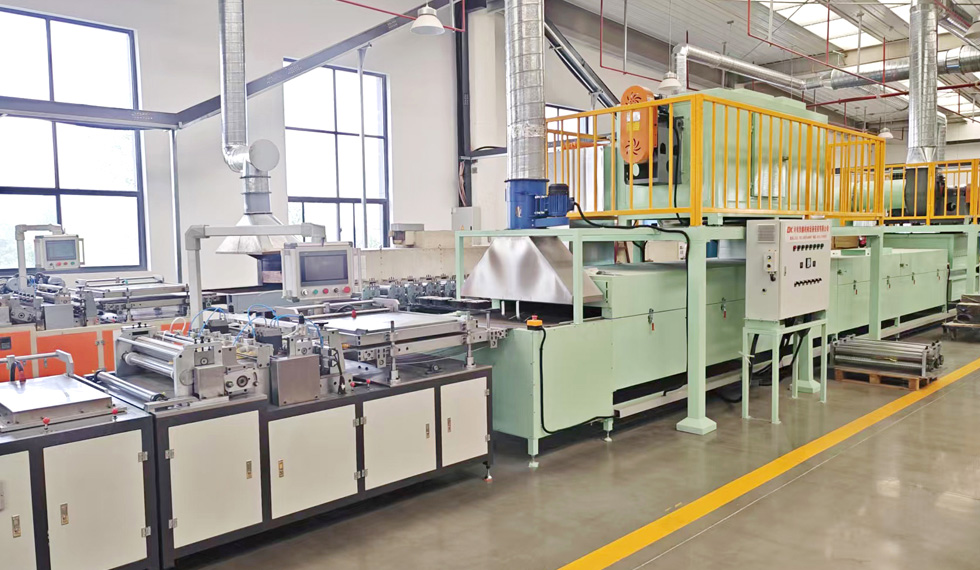

Automatic Folding Line
The feeding of filter media, folding and cutting to length are carried out continuously, ensuring consistency between fold height and number of folds.
30 Years Dedicated to Compressed Air Filtration & Separation Technology. Serving Petrochemical, Power, Cement, Plastic, Laser Cutting & More
Home / A FullCycle Manufacturer of Air Compressor Filter Elements
AIRPULL’s Manufacturing, Quality and R&D Capabilities
A Full-Cycle Manufacturer of Air Compressor Filter Elements
From filter media to finished components, AIRPULL maintains full in-house control throughout the entire production process, supplying highly reliable and efficient replacement filter elements and OEM filter components to global air compressor brands, distributors and MRO customers.
Modern Equipment and Advanced Manufacturing Processes
Manufacturing and Process Capabilities
From filter media to finished components, the entire manufacturing process is carried out in-house within a closed-loop system, ensuring consistent performance and traceable quality.
15 in-house production lines
Key processes are integrated into a seamless production line within the factory, reducing the need for transfer between stages and the risk of contamination, whilst allowing for greater flexibility in production scheduling.
L1
L2

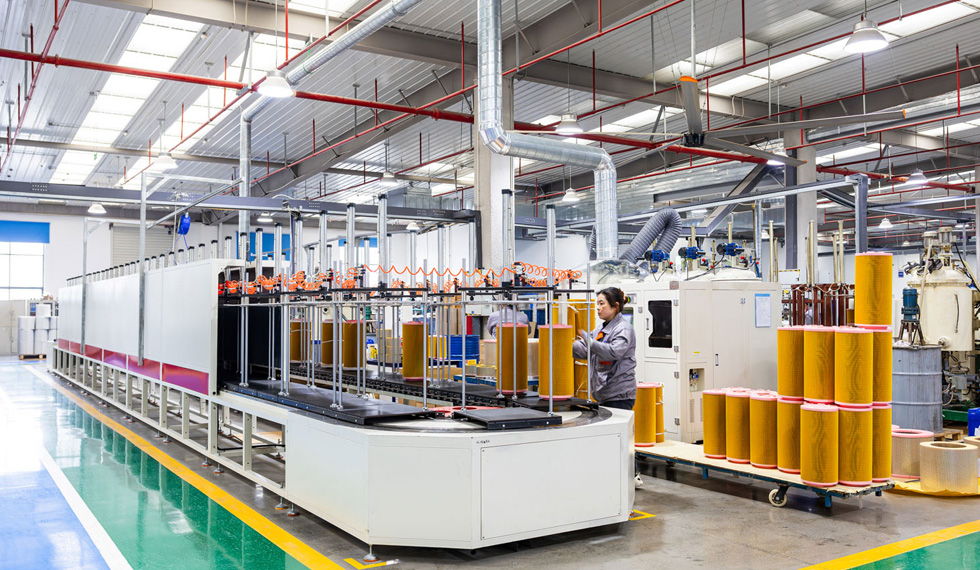

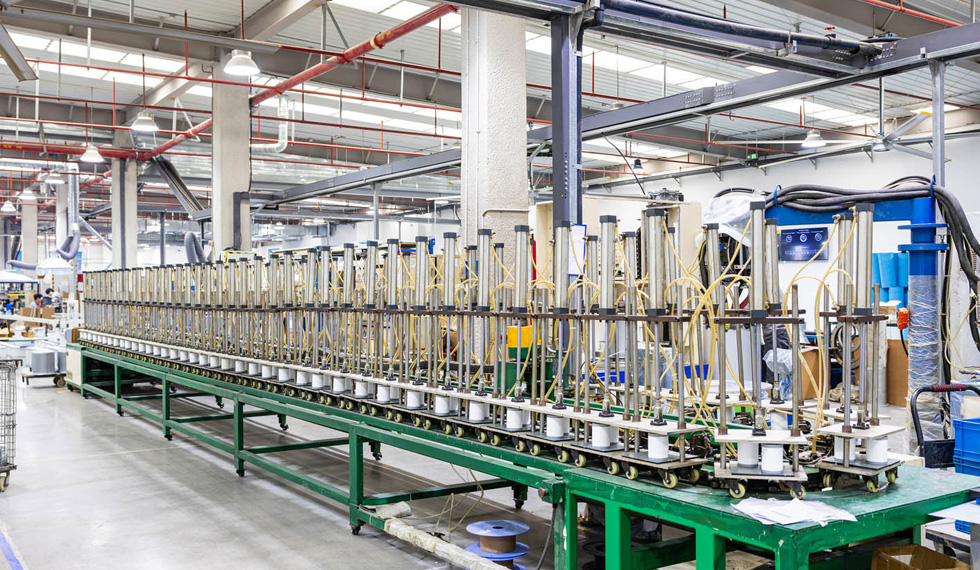

Adhesive Application and Curing Line
Following automatic adhesive application to the end caps, the components undergo controlled curing to ensure bonding strength and sealing.
L3

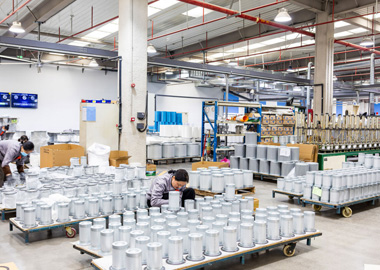

Assembly, Inspection and Packaging Line
Assembly, in-line spot checks and clean packaging are carried out in sequence, supporting export-grade delivery.
Manufacturing Process
A Closed-Loop Manufacturing Process Within The Factory, From Filter Media To Finished Product
Key production stages are integrated into a continuous in-house production line, minimising the need for intermediate handling and the risk of cont-amination, whilst ensuring consistent quality and flexible production scheduling. The following outlines the main stages involved in the production of a single filter cartridge, from raw materials to dispatch.
Filter Media and Incoming Materials
Verify the specifications and batches of the filter media, end caps and sealing rings; materials may only be put into production once they have passed incoming quality control (IQC).
Automatic Pleating
Loading, pleating and cutting the filter media to length are carried out continuously, ensuring consistency in pleat height and number of pleats. Number of production lines to be confirmed.
Adhesive Application and Curing
Automatic, metered application of adhesive to the end caps, followed by curing under controlled temperature and time conditions to ensure bonding strength and sealing.
Assembly and Forming
The central tube, end caps and filter media are assembled and joined; in-process quality control (PQC) conducts online inspections and corrects deviations.
Performance Testing
In-house test benches are used to verify filtration efficiency, initial pressure drop, dust-holding capacity and burst pressure.
Clean Packing
Clean packing and export-grade protection; products are stored in the warehouse following final inspection (FQC) and delivered on time via our logistics network. Delivery schedule to be confirmed.

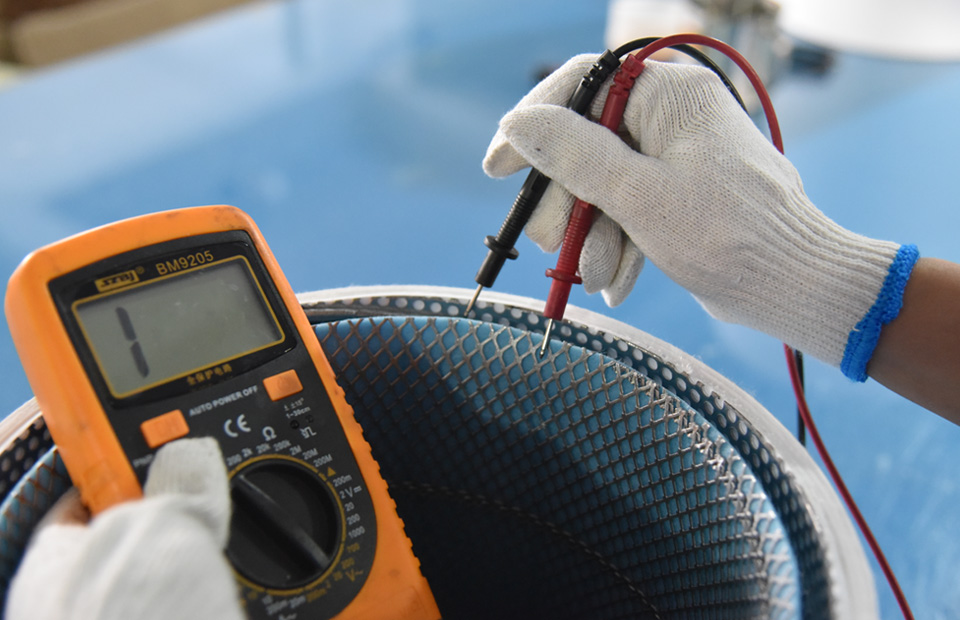

Quality Control
Uncompromising Quality Control
Quality is built into every stage of the production process. We carry out incoming, in-process and final inspections, supplemented by data-driven verification using our in-house test benches.
- IQC
Incoming Quality Control
Filter media, end caps and seals are checked for specifications and batch quality prior to use.
- PQC
In-Process Quality Control
Routine inspections are carried out during the pleating, adhesive application and assembly stages to correct deviations at an early stage.
- FQC
Final Inspection
Performance and visual inspections, or sampling, are carried out prior to warehousing.
- Filtration Efficiency (by filtration grade)
- Burst Pressure
- Initial Pressure Drop / Resistance
- Dimensions and Appearance
- Dust-holding Capacity and Service Life
- Seal Integrity and Bypass Testing
Research and Development and Engineering Capabilities
Ongoing Product Innovation and Investment in Research and Development
AIRPULL has a dedicated research and development and engineering team covering filter media, design and validation, enabling the development of filter cartridge solutions tailored to specific compressor models and operating conditions.
01
R&D Team
Full-time filter cartridge and structural engineers (number to be confirmed), specialising in the optimisation of filter media formulations and structural designs.
02
Testing and Validation
In-house test rigs capable of measuring filtration efficiency, initial pressure drop, dust-holding capacity and burst pressure.
03
Rapid Prototyping
We support rapid prototyping based on provided drawings or samples, and offer small-batch trial production.
04
Design and Mould Making
We possess CNC machining and mould-making capabilities for end caps, centre tubes and tooling, supporting in-house iterative development.
05
Filter Media and Processes
We continuously develop filter media formulations and lamination processes to reduce pressure drop, increase dust-holding capacity and extend service life.
06
Application Engineering
We provide product selection and cross-brand replacement recommendations for operating conditions involving high dust levels, high temperatures, high humidity and high oil content, covering leading air compressor brands such as CAT (Caterpillar) and CTA.
Factory Tours Transparent Production Processes and Reliable Delivery
Book NowWe encourage our customers to visit our factory to witness every stage of the production process first-hand. By establishing direct lines of communication, we ensure our customers have a full understanding of our production processes, quality control and product delivery. This transparency helps to strengthen our customers’ trust in our brand.If you would like to arrange a factory tour or a virtual tour, please feel free to contact us using the contact details at the bottom of the page.
Discuss Your Filter Cartridge Requirements
Whether you require standard replacement parts or bespoke OEM solutions, simply provide us with your machine model and operating conditions, and our engineering team will offer product selection advice, sample comparisons and mass production solutions.
We support the dispatch of samples for practical testing and comparison, as well as scheduled factory visits. We maintain a record of your requirements to facilitate long-term, stable collaboration. Response times and sample production lead times are subject to confirmation.
