- Element Type:Flange-Mounted Separator Element
- Filter Media:Imported HV borosilicate glass fiber (multi-density layers)
- Filtration Accuracy:≤ 0.1 μm
- Separation Efficiency:≥ 99.99%
- Oil Carryover:< 3 ppm
- Initial Pressure Drop:≤ 0.02 MPa
- Collapse Pressure:5 bar
- Service Life:3,500–5,200 h (oil quality / temperature dependent)
- Max Working Pressure:1.0 MPa
- Working Temperature:-20 °C to 100 °C
- End Caps & Support Core:Stainless steel (corrosion-resistant, high collapse strength)
- Sealing Gaskets:NBR / Viton (oil-resistant)
- MOQ:1 piece
- HS Code:8421.2990
Product Overview

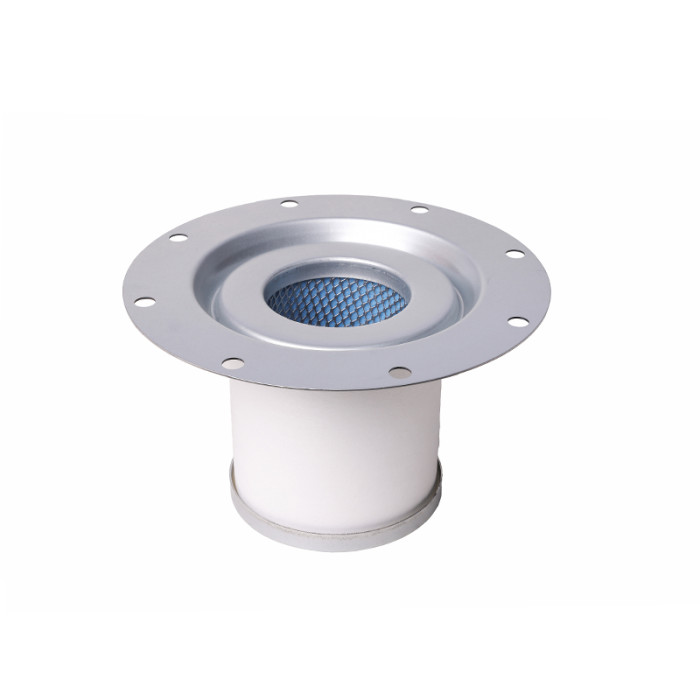

AIRPULL air/oil separator element for Atlas Copco GA30-GA50. Drop-in fit, <3 ppm, OEM-matched.
Direct OEM Compatible Flange-Mounted Element Anti-Static Grounding Factory-Direct Air Oil Separator Element for GA Rotary Screw Compressors Compatible element 1613879701 for Atlas Copco GA30, GA37, GA45 and GA50 (incl. VSD variants) rotary screw compressors.
Where it fits
Built as a direct drop-in compatible element for rotary screw air compressors (separation tower). Send us your compressor make, model and current part number and we will confirm the correct match before you order.
Technical Specifications
| Filter Type | Flange-Mounted Separator Element |
|---|---|
| Model / Part No. | 1613879701 |
| Brand | AIRPULL |
| Filter Media | Imported HV borosilicate glass fiber (multi-density layers) |
| Filtration Accuracy | ≤ 0.1 μm |
| Separation Efficiency | ≥ 99.99% |
| Oil Carryover | < 3 ppm |
| Initial Pressure Drop | ≤ 0.02 MPa |
| Collapse Pressure | 5 bar |
| Service Life | 3,500–5,200 h (oil quality / temperature dependent) |
| Max Working Pressure | 1.0 MPa |
| Working Temperature | -20 °C to 100 °C |
| End Caps & Support Core | Stainless steel (corrosion-resistant, high collapse strength) |
| Sealing Gaskets | NBR / Viton (oil-resistant) |
| MOQ | 1 piece |
| HS Code | 8421.2990 |
| Country of Origin | China (Xinxiang, Henan) |
Support compatible according to part number or drawing
Disclaimer
AIRPULL compatible filter elements are aftermarket components manufactured to meet or exceed the dimensional and performance specifications of the referenced OEM parts. All referenced part numbers and drawings are listed for cross-reference and compatibility identification only. AIRPULL is not affiliated with any original equipment manufacturer. Brand names, trademarks and part numbers shown on this page are the property of their respective owners. Please confirm fitment against your compressor model and serial number before ordering.
