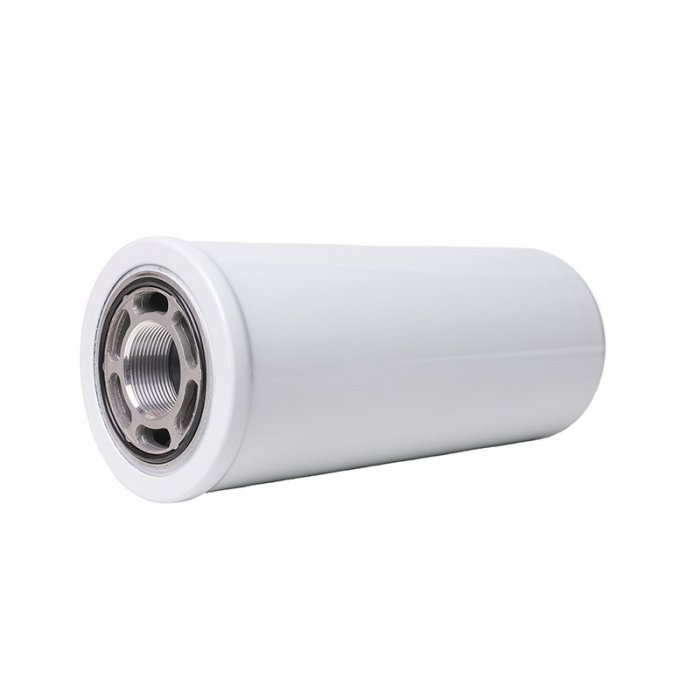

Compressor Oil Filter Element Manufacturer Supplier | Screw Compressor Compatible

Model
47715384001

Detail Information

Element Type:Compressor oil filter element
Filter Media:Imported pleated filter paper (cellulose / glass-fiber blend)
Filtration Precision:10–25 µm
Initial Pressure Drop:≤ 0.02 MPa
Service Life:Up to 2,000 h (oil quality / temperature dependent)
End Caps:Polymer, color-coded (red top / red bottom)
Center Tube:Stainless steel (corrosion-resistant, high collapse strength)
Sealing Gaskets:NBR
MOQ:1 piece
HS Code:8421.2390

Product Overview

Compressor oil filter element: 10–25 µm filtration, low pressure drop, up to 2,000 h service life. OEM drop-in fit.

Direct OEM Compatible Drop-in Fit Color-Coded Caps Factory-Direct Compressor Oil Filter Element for Screw Compressors Compatible cartridge 47715384001 for Ingersoll Rand rotary screw air compressors. Captures wear particles and sludge, extends oil life, and protects bearings and rotors with OEM-matched fit. Part No.

Where it fits

Built as a direct drop-in compatible element for rotary screw air compressors (oil circuit). Send us your compressor make, model and current part number and we will confirm the correct match before you order.

Technical Specifications

Filter Type	Compressor oil filter element
Model / Part No.	47715384001
Brand	AIRPULL
Filter Media	Imported pleated filter paper (cellulose / glass-fiber blend)
Filtration Precision	10–25 µm
Initial Pressure Drop	≤ 0.02 MPa
Service Life	Up to 2,000 h (oil quality / temperature dependent)
End Caps	Polymer, color-coded (red top / red bottom)
Center Tube	Stainless steel (corrosion-resistant, high collapse strength)
Sealing Gaskets	NBR
MOQ	1 piece
HS Code	8421.2390
Country of Origin	China (Xinxiang, Henan)

Part Number Support

Support compatible according to part number or drawing

47715384001

39911631

250025-526

47726255001

47621424001

043334

02250131-496

250025-525

02250121-500

02250137-895

88290001-469

405158

250034-085

02250048-734

02250047-808

02250125-371

Didn't find your part number? Send us the compressor model or serial number — we'll check compatibility and reply within 24 hours.

Disclaimer

AIRPULL compatible filter elements are aftermarket components manufactured to meet or exceed the dimensional and performance specifications of the referenced OEM parts. All referenced part numbers and drawings are listed for cross-reference and compatibility identification only. AIRPULL is not affiliated with any original equipment manufacturer. Brand names, trademarks and part numbers shown on this page are the property of their respective owners. Please confirm fitment against your compressor model and serial number before ordering.
