- Element Type:Spin-on separator element (OEM-equivalent)
- Filter Media:Imported HV glass fiber (multi-density layers)
- Oil Carryover:< 3 ppm
- Initial Pressure Drop:≤ 0.02 MPa
- Service Life:Up to 4,000 h (oil quality / temperature dependent)
- End Caps & Support Core:Stainless steel (corrosion-resistant, high collapse strength)
- Sealing Gaskets:NBR / Viton with metal grounding pins
- MOQ:1 piece
- HS Code:8421.2990

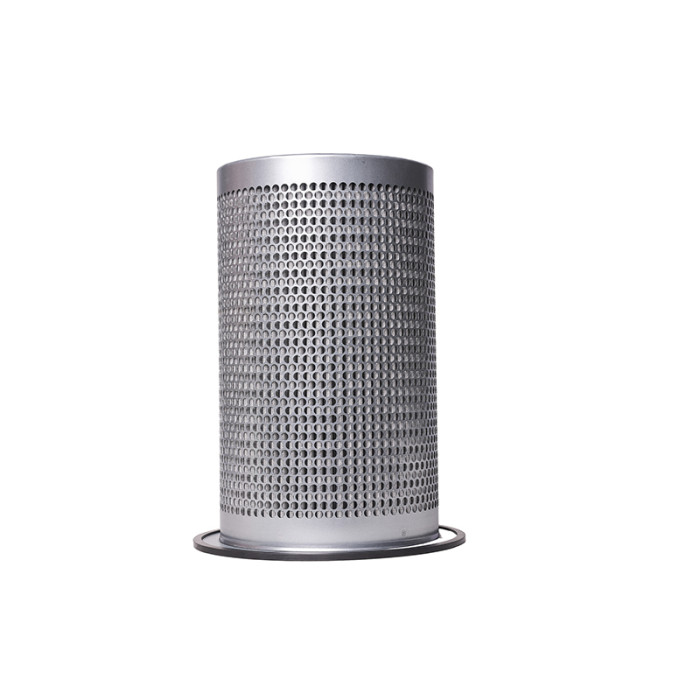

Product Overview
The oil separator element sits in the compressor's separation tower and does the heavy lifting on air quality. As oil-laden compressed air passes through the pleated glass-fiber media, tiny oil aerosols coalesce into droplets, drain back to the sump, and only clean, dry air leaves the element. That's what keeps your oil consumption down and your air clean enough for painting, instrumentation and breathing-air prep.
Every element is built on AIRPULL's L1–L3 production lines with IQC / PQC / FQC checks at each stage. The pleat pack is secured against media migration, end caps are bonded to prevent bypass, and the gasket matches the original equipment spec for a true drop-in fit. Result: stable pressure drop across the service interval and predictable change-out timing.
Where it fits
Built to sit in the separation tower of rotary screw air compressors. Send us your compressor make, model and current separator part number, and we will confirm the correct match before you order.
Technical Specifications
| Filter Type | Air / Oil Separator Element (Coalescing) |
|---|---|
| Application | Rotary screw air compressor — separation tower |
| Media | Glass-fiber coalescing, pleated |
| Outer Diameter | 390 mm |
| Flange Diameter | 480 mm (12 bolt holes) |
| Height / Length | 420 mm |
| Filtration Rating | ≤ 0.1 µm |
| Separation Efficiency | ≥ 99.99% |
| Residual Oil Carry-over | < 3 ppm |
| Initial Pressure Drop | ≤ 0.02 MPa |
| Max. Working Pressure | 1.0 MPa |
| Max. Operating Temp. | -20 ~ 100 °C |
| End Cap Material | Steel |
| Seal Material | Nitrile rubber (NBR) |
| Service Interval | 4000–6000 h (follow compressor manual) |
| Compatible OEM No. | 47759069001 |
| Country of Origin | China (Xinxiang, Henan) |
| HS Code | 8421.99 |
Support compatible according to part number or drawing
Disclaimer
AIRPULL compatible filter elements are aftermarket components manufactured to meet or exceed the dimensional and performance specifications of the referenced OEM parts. All referenced part numbers and drawings are listed for cross-reference and compatibility identification only. AIRPULL is not affiliated with any original equipment manufacturer. Brand names, trademarks and part numbers shown on this page are the property of their respective owners. Please confirm fitment against your compressor model and serial number before ordering.
