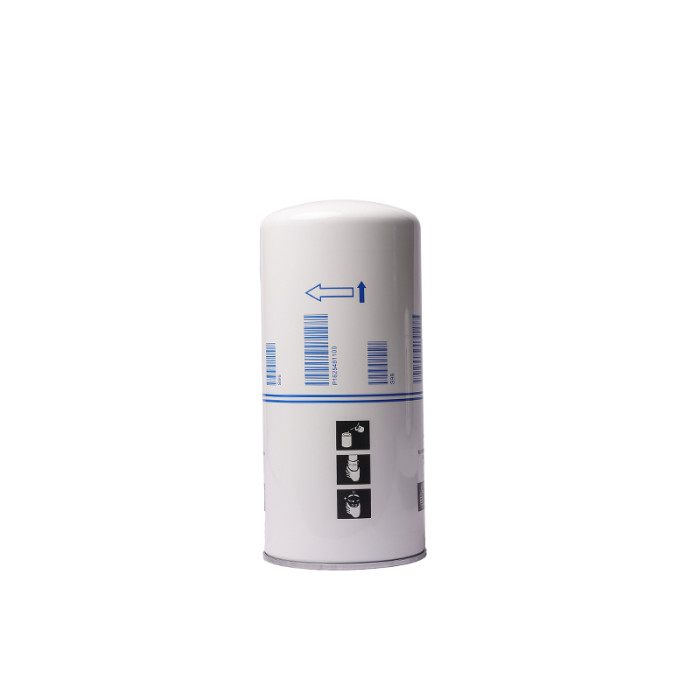

Air Oil Separator Cartridge Manufacturer Supplier | Screw Compressor 1625481100
- Model
- 1625481100
- Element Type:Spin-On Cartridge Separator Element
- Filter Media:Imported HV Glass Fiber
- Filtration Accuracy:≤ 0.1 μm
- Separation Efficiency:≥ 99.99%
- Oil Carryover:< 3 ppm
- Initial Pressure Drop:≤ 0.02 MPa
- Collapse Pressure:5 bar
- Service Life:3,500–5,200 h
- Max Working Pressure:1.0 MPa
- Working Temperature:-20°C to 100°C
- End Caps & Core:Stainless Steel
- Sealing Gasket:NBR / Viton
- MOQ:1 Piece
- HS Code:8421.2990
Product Overview
Direct OEM compatible air oil separator element for Atlas Copco GA18 / GA22 / GA26 / GA30 / GA37 VSD+ rotary screw compressor…
Where it fits
Built as a direct drop-in compatible element for rotary screw air compressors (separation tower). Send us your compressor make, model and current part number and we will confirm the correct match before you order.
Technical Specifications
| Filter Type | Spin-On Cartridge Separator Element |
|---|---|
| Model / Part No. | 1625481100 |
| Brand | AIRPULL |
| Filter Media | Imported HV Glass Fiber |
| Filtration Accuracy | ≤ 0.1 μm |
| Separation Efficiency | ≥ 99.99% |
| Oil Carryover | < 3 ppm |
| Initial Pressure Drop | ≤ 0.02 MPa |
| Collapse Pressure | 5 bar |
| Service Life | 3,500–5,200 h |
| Max Working Pressure | 1.0 MPa |
| Working Temperature | -20°C to 100°C |
| End Caps & Core | Stainless Steel |
| Sealing Gasket | NBR / Viton |
| MOQ | 1 Piece |
| HS Code | 8421.2990 |
| Country of Origin | China (Xinxiang, Henan) |
Support compatible according to part number or drawing
Disclaimer
AIRPULL compatible filter elements are aftermarket components manufactured to meet or exceed the dimensional and performance specifications of the referenced OEM parts. All referenced part numbers and drawings are listed for cross-reference and compatibility identification only. AIRPULL is not affiliated with any original equipment manufacturer. Brand names, trademarks and part numbers shown on this page are the property of their respective owners. Please confirm fitment against your compressor model and serial number before ordering.
Need a quote or fitment check?
Tell us your compressor brand, model and current OEM number — we confirm the match and send pricing within 24 hours.
