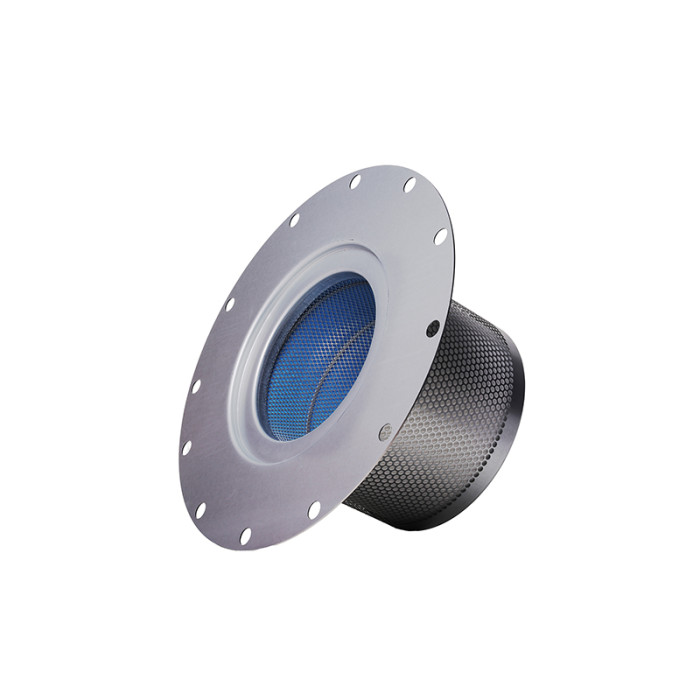

Rotary Screw Compressor Oil Separator Element | OEM Compatible Manufacturer 1621938499

Model
1621938499

Detail Information

Element Type:Flange-Mounted Separator Element
Filter Media:Imported HV borosilicate glass fiber (multi-density layers)
Filtration Accuracy:≤ 0.1 μm
Separation Efficiency:≥ 99.99%
Oil Carryover:< 3 ppm
Initial Pressure Drop:≤ 0.02 MPa
Collapse Pressure:5 bar
Service Life:3,500–5,200 h (oil quality / temperature dependent)
Max Working Pressure:1.0 MPa
Working Temperature:-20 °C to 100 °C
End Caps & Support Core:Stainless steel (corrosion-resistant, high collapse strength)
Sealing Gaskets:NBR / Viton (oil-resistant)
MOQ:1 piece
HS Code:8421.2990

Product Overview

AIRPULL air/oil separator element for Atlas Copco GA90 GA110. Drop-in fit, <3 ppm, OEM-matched.

Direct OEM Compatible Flange-Mounted Element Anti-Static Grounding Factory-Direct Air Oil Separator Element for GA Rotary Screw Compressors Compatible element 1621938499 for Atlas Copco GA90 and GA110 rotary screw compressors. Clean, dry compressed air with lower oil consumption and OEM-matched flange fitment. Part No.

Where it fits

Built as a direct drop-in compatible element for rotary screw air compressors (separation tower). Send us your compressor make, model and current part number and we will confirm the correct match before you order.

Technical Specifications

Filter Type	Flange-Mounted Separator Element
Model / Part No.	1621938499
Brand	AIRPULL
Filter Media	Imported HV borosilicate glass fiber (multi-density layers)
Filtration Accuracy	≤ 0.1 μm
Separation Efficiency	≥ 99.99%
Oil Carryover	< 3 ppm
Initial Pressure Drop	≤ 0.02 MPa
Collapse Pressure	5 bar
Service Life	3,500–5,200 h (oil quality / temperature dependent)
Max Working Pressure	1.0 MPa
Working Temperature	-20 °C to 100 °C
End Caps & Support Core	Stainless steel (corrosion-resistant, high collapse strength)
Sealing Gaskets	NBR / Viton (oil-resistant)
MOQ	1 piece
HS Code	8421.2990
Country of Origin	China (Xinxiang, Henan)

Part Number Support

Support compatible according to part number or drawing

1621938499

1503 0190 00

1513 0337 00

1513 0058 00

1613 9001 00

1613 6105 00

1613 9014 00

1622 0871 00

1625426100

2202929400

1092200280

1619 1269 00

1612 3869 00

1613 6921 00

1613 7502 00

1613 8720 00

Didn't find your part number? Send us the compressor model or serial number — we'll check compatibility and reply within 24 hours.

Disclaimer

AIRPULL compatible filter elements are aftermarket components manufactured to meet or exceed the dimensional and performance specifications of the referenced OEM parts. All referenced part numbers and drawings are listed for cross-reference and compatibility identification only. AIRPULL is not affiliated with any original equipment manufacturer. Brand names, trademarks and part numbers shown on this page are the property of their respective owners. Please confirm fitment against your compressor model and serial number before ordering.
