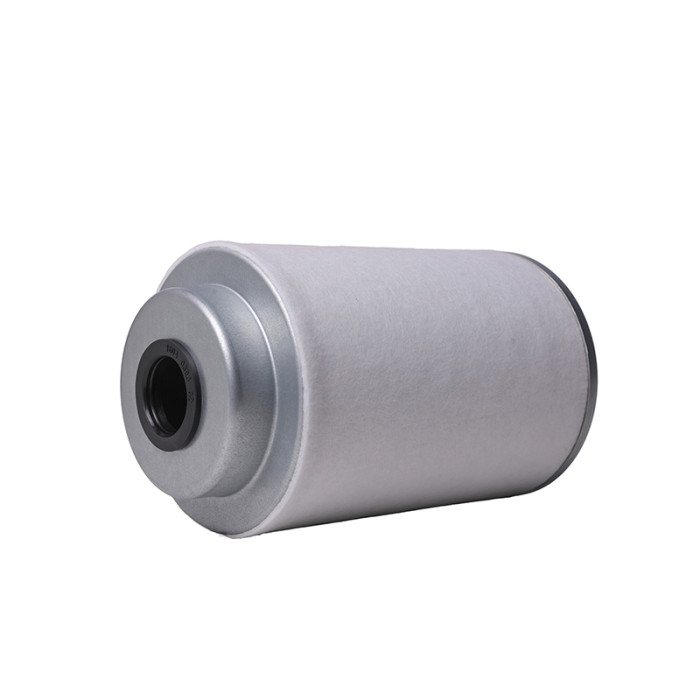

Air Oil Separator Element Manufacturer & Supplier | Spin-On Screw Compressor Oil Separator
- Model
- 1604038201
- Element Type:Spin-on cylindrical cartridge
- Filter Media:Imported HV glass fiber
- Filtration Accuracy:≤ 0.1 μm
- Separation Efficiency:≥ 99.99%
- Oil Carryover:< 3 ppm
- Initial Pressure Drop:≤ 0.02 MPa
- Service Life:3,000-5,000 h
- Max Working Pressure:1.0 MPa
- HS Code:8421.2990
Product Overview
Spin-on air oil separator element for GA-series screw compressors: <3 ppm oil carryover, 3,000-5,000 h life. Factory direct.
Direct OEM Compatible Spin-On Cartridge Anti-Static Grounding Factory-Direct Air Oil Separator Element for GA-Series Screw Compressors Compatible element 1604038201 for Atlas Copco GA-series and portable screw compressors. Clean, dry compressed air with lower oil consumption and OEM-matched dimensions. Part No.
Where it fits
Built as a direct drop-in compatible element for rotary screw air compressors (separation tower). Send us your compressor make, model and current part number and we will confirm the correct match before you order.
Technical Specifications
| Filter Type | Spin-on cylindrical cartridge |
|---|---|
| Model / Part No. | 1604038201 |
| Brand | AIRPULL |
| Filter Media | Imported HV glass fiber |
| Filtration Accuracy | ≤ 0.1 μm |
| Separation Efficiency | ≥ 99.99% |
| Oil Carryover | < 3 ppm |
| Initial Pressure Drop | ≤ 0.02 MPa |
| Service Life | 3,000-5,000 h |
| Max Working Pressure | 1.0 MPa |
| HS Code | 8421.2990 |
| Country of Origin | China (Xinxiang, Henan) |
Support compatible according to part number or drawing
Disclaimer
AIRPULL compatible filter elements are aftermarket components manufactured to meet or exceed the dimensional and performance specifications of the referenced OEM parts. All referenced part numbers and drawings are listed for cross-reference and compatibility identification only. AIRPULL is not affiliated with any original equipment manufacturer. Brand names, trademarks and part numbers shown on this page are the property of their respective owners. Please confirm fitment against your compressor model and serial number before ordering.
Need a quote or fitment check?
Tell us your compressor brand, model and current OEM number — we confirm the match and send pricing within 24 hours.
